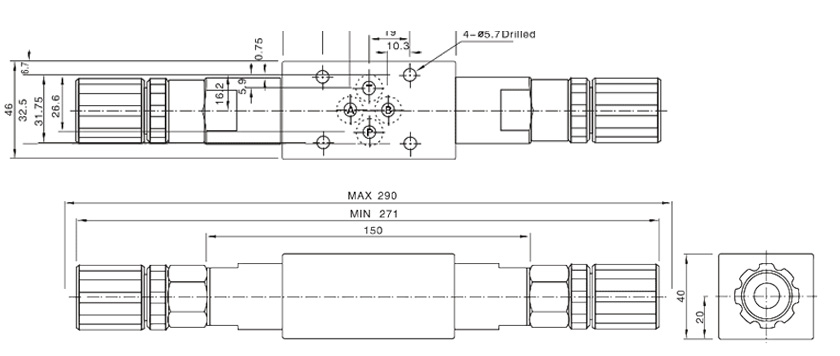

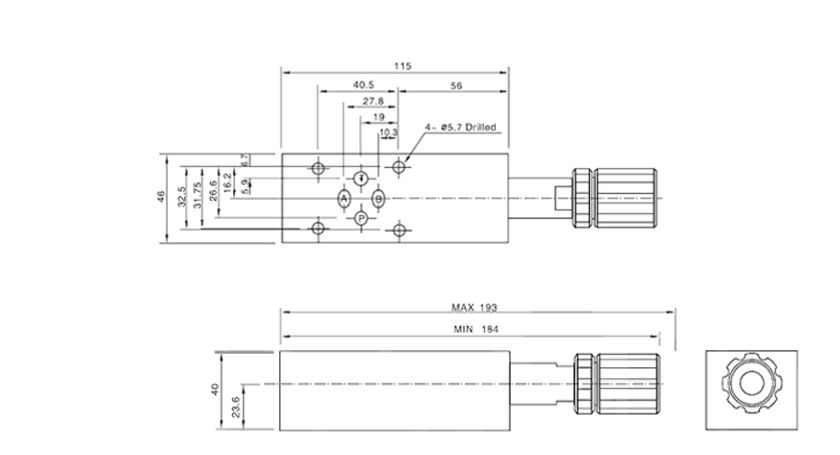

Add To InquiryModular Valve - MRV
shared:
| Model | Max.Operated Pressure (kgf/cm²) | Pressure ADJ. Range (kgf/cm²) | Max Flow (L/min) | Weight (kg) |
| MRV-02-P/A/B | 210 | 1,2,3 | 40 | 1.5 |
-
Series definition
MRV：Stacked guide on3 way valve -
Nominal diameter
02：1/4” ( Maximum working pressure 210 kg/cm² Maximum flow 40 L/min )
03：3/8” ( Maximum working pressure 210 kg/cm² Maximum flow 80 L/min ) -
Work port
P : P port
A : A port
B : B port -
Pressure adjustment range
1 : 8 ~70 kg/cm²
3 : 10 ~ 210 kg/cm²
4 : 10 ~ 315 kg/cm²
