Relef Valve RV-06G
Add To Inquiry

Relef Valve RV-06G

shared:
Model Pressure ADJ.Range (kgf/cm²) Rated flow (l/min) Weight (kg)
Sub-plate type
RV-03G 1：8～70 50 5.0
RV-06G 3：8～210 125 6.0
RV-10G 4：8～315 400 11

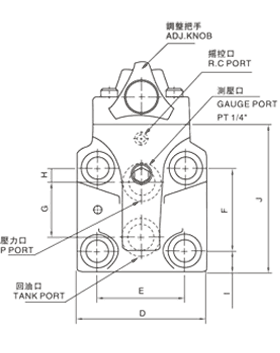

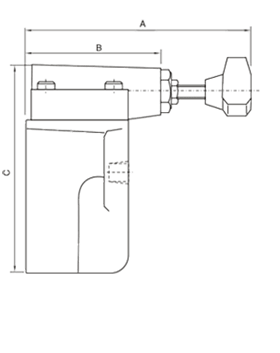

  • RV-06G/10G

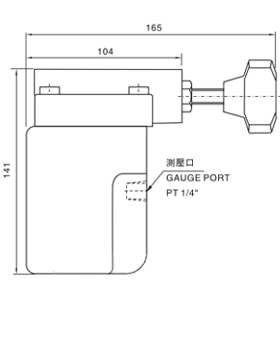

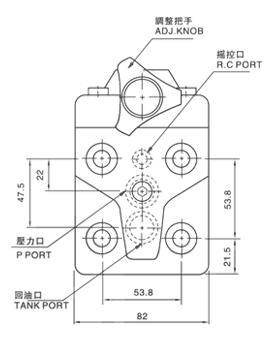

  • RV-03G



  1. Series definition RV：General purpose overflow valve
    RV：General purpose overflow valve
    SRV：Electromagnetic overflow valve

  2. Nominal daimeter
    RV：01、02、03、06、10
    SRV：03、06、10

  3. Installation
    G：plate
    T：With tubular

  4. Pressure range
    1：8~70 kg/cm²
    3：8~210 kg/cm²
    4：8~315 kg/cm
