Add To InquiryVariable Displacement Vane Pump - DF
- It combines two variable vane pumps which use a shared drive shaft.
- The duplex variable pump is driven by a motor, reducing the assembly space.
- It can supply the pressure and flow of different circuits at the same time.
- It is easy to assemble, and can be directly combined with a motor to form a motor pump assembly.
shared:
| Model | Max.operating (kg/cm²) |
Output flow (AT3.5kg/cm²) 1800r.p.m (l/min) (kg/cm²) |
Ports Size | Speed (r.p.m) | Weight (kg) | |||
| Out | In | DR. | Min | Max. | Flangtype | |||
| VP-SF-15-15 | 70 | 15 | 3/8 | 1/2 | 1/4 | 800 | 1800 | 10 |
| VP-SF-20-20 | 70 | 20 | 3/8 | 1/2 | 1/4 | 800 | 1800 | 10 |
| VP-SF-30-30 | 70 | 30 | 1/2 | 3/4 | 1/4 | 800 | 1800 | 16 |
| VP-SF-40-40 | 70 | 40z | 1/2 | 3/4 | 1/4 | 800 | 1800 | 16 |
- Series definition
-
SF：Single pump
DF：Double pump
DG：Variable pump+PA The gear pump
- Output flow
-
Pressure adjustment range
A：8~20kg/cm²
B：15~35kg/cm²
C：30~55kg/cm²
D：50~70kg/cm²
-
Shaft form
blank：Standard flat key
7T：7 spline
9T：9 spline
- Special specifications
- Design number

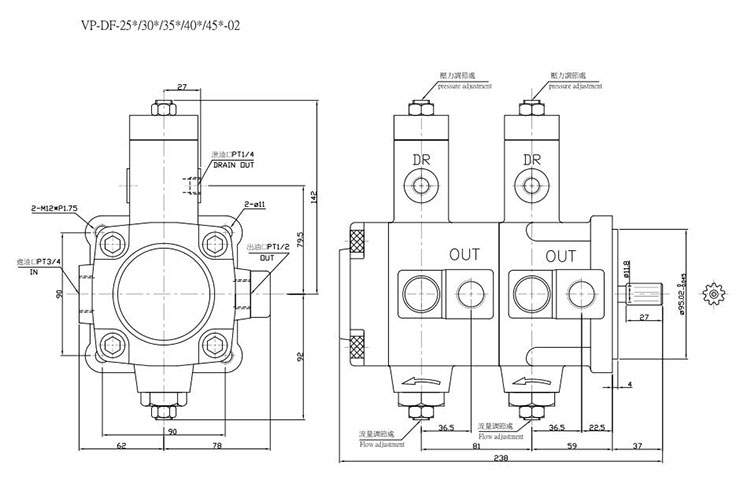

VP-DF-40D.40D
APPLICATIONS
